Description

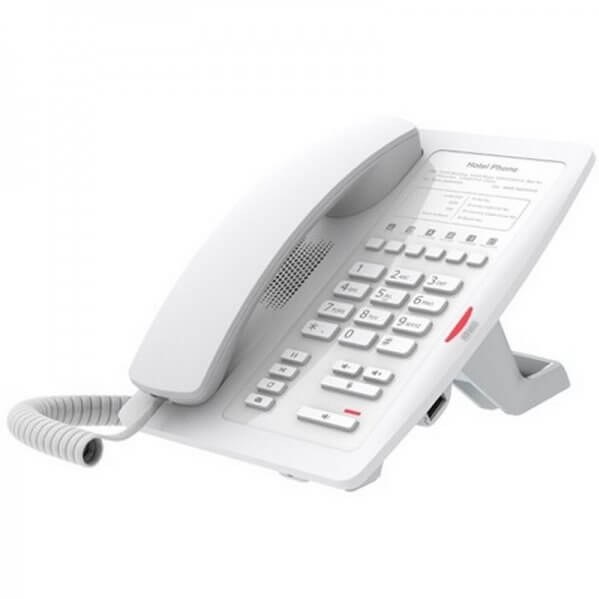

The Fanvil H3W is the Wi-Fi version of the H3 room phone. Thanks to its built-in 2.4 GHz Wi-Fi (802.11 b/g/n), it installs in a room or area with no network socket, without pulling cable, while keeping two Gigabit Ethernet ports for a wired connection if preferred. With no display and no phonebook, it sticks to the essentials with 2 SIP accounts and HD audio for clear conversations. The USB port charges the guest's smartphone. It is powered over PoE through the network cable or with the supplied 5 V / 1 A adapter, for a consumption of 7.5 W. The web interface and auto-provisioning make it quick to equip a whole property. Beyond hotels, it suits supermarkets, hospitals and shopping malls. This version comes in white.
Specifications
| Reference | H3W |
|---|---|
| Brand | Fanvil |
| Manufacturer order code | H3W-WHITE |
| Type | Wi-Fi SIP hotel phone |
| EAN code | 6937295604160 |
| SIP accounts | 2 |
| Color | White |
| Display | None |
| Phonebook | None |
| Wi-Fi | Built-in 802.11 b/g/n 2.4 GHz |
| Network | 2 x RJ45 Gigabit (LAN and PC) |
| USB | 1 port, smartphone charging |
| Management | Web interface, auto-provisioning |
| Power | PoE, 5 V / 1 A adapter included |
| Power consumption | 7.5 W |
| Handset cord | CORD-7 |
| Replacement handset | HANDSET-6 |
| Headset | optional HT302 RJ9 |
| Dimensions | 152 x 193 x 132 mm |
| Packed weight | 1.29 kg |
Use and tips
The H3W is built for rooms, floor offices or points of sale where no network socket is available: it joins the property's Wi-Fi and registers on the IP PBX like a wired phone. It equips a hotel as well as a supermarket, a hospital or a shopping arcade. Plug in the supplied power adapter when on Wi-Fi; on a wired link to a PoE switch, it is not needed. The USB port helps guests charge their phone. If the room has a network socket, the H3 without Wi-Fi is enough.
Frequently asked questions
Which PBX or provider does this phone work with?
With any SIP-compatible IP PBX or VoIP service, including the IP PBXs used in hospitality (3CX, Asterisk, hosted Centrex). Tell us about your setup through our contact page and we confirm compatibility before you order.
Is a network cable required?
No, the H3W connects to the property's 2.4 GHz Wi-Fi network and is powered by the supplied 5 V / 1 A adapter. You can also connect it by cable on one of its two Gigabit ports, with PoE power if the switch provides it.
What is the warranty?
Two-year statutory conformity warranty, plus the Fanvil manufacturer warranty under its own terms.
Where are the firmware, manuals and guides?
Fanvil provides the firmware, user manual and administrator guide of this phone free of charge: our Fanvil support page takes you straight to the documents for this model.
