Description

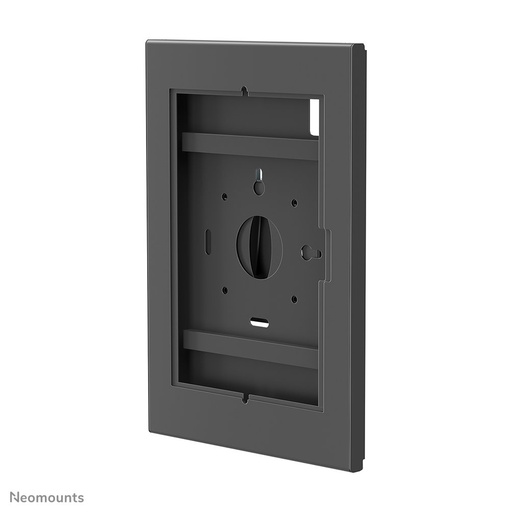

Featuring a VESA 75x75 pattern and a clean black finish, it keeps your device neatly positioned against the wall for a professional, space-saving appearance. The tablet wall mount is part of a modular set up and must be combined with the following tablet casings WL15-601BL1 : for size 10,9-11" | 25,4-27,9 cm WL15-602BL1 : for size 12,4-13" | 31,5-33 cm WL15-603BL1 : for size 14,6" | 37,1 cm.
Specifications
| Max. weight (kg) | 3 |
|---|---|
| Screens | 1 |
| Min. VESA | 75x75 mm |
| Max. VESA | 100x100 mm |
| VESA pattern | 75x75, 100x75, 75x100, 100x100 |
| Mount | Wall |
| Type | Fixed |
| Width (cm) | 12 cm |
| Depth (cm) | 1,4 cm |
| Height (cm) | 16,2 cm |
| Distance to wall (cm) | 1,4 cm |
| Cable management | No |
| Main material | Steel |
| Lockable | Not lockable |
| Net weight of product (kg) | 0.43 |
| Gross weight of packaging (kg) | 0.48 |
| Country of origin | China |
| EAN code | 8721246340430 |
Use and tips
A tablet mount turns the device into a fixed station: ordering, information, time tracking or signage. In public areas, choose a lockable version and plan the power cable route, since a tablet in continuous use has to stay connected.
Frequently asked questions
Is my screen compatible?
This model accepts 3 kg maximum, VESA 75x75 to 100x100. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
