Description

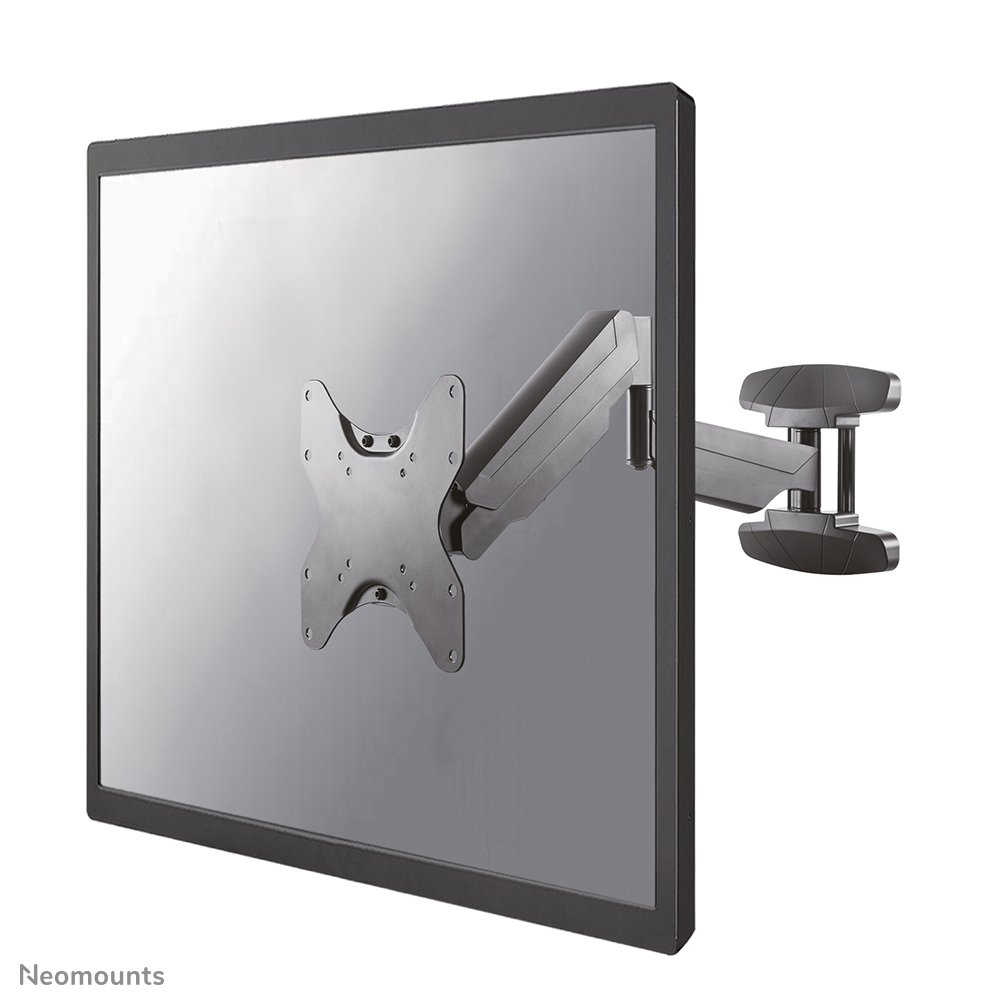

The mount can be levelled for the perfect installation. The WL70-550BL12 has a depth of 5,9-56,3 cm and is suitable for screens that meet VESA hole pattern 75x75 to 200x200 mm. The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.
Specifications
| Min. screen size (inch) | 23 |
|---|---|
| Max. screen size (inch) | 42 |
| Min. weight (kg) | 5 |
| Max. weight (kg) | 30 |
| Screens | 1 |
| Min. VESA | 75x75 mm |
| Max. VESA | 200x200 mm |
| VESA pattern | 75x75, 200x100, 100x100, 200x200 |
| Mount | Wall |
| Type | Tilt, Rotate, Swivel, Full motion |
| Tilt (degrees) | +5°, -15° |
| Rotate (degrees) | +3°, -3° |
| Swivel (degrees) | 180° |
| Height adjustment | 0-28,2 cm |
| Width (cm) | 22,6 cm |
| Depth (cm) | 56,3 cm |
| Height (cm) | 32,7 cm |
| Distance to wall (cm) | 5,9-56,3 cm |
| Cable management | Yes |
| Main material | Steel |
| EAN code | 8717371449056 |
Use and tips
A wall mount frees the floor and the furniture completely, which makes it the most durable option for meeting rooms, receptions and digital signage. Identify the wall type before installation: concrete and solid brick take the supplied anchors, while a hollow partition or a metal stud frame needs suitable fixings and often a reinforcement.
Frequently asked questions
Is my screen compatible?
This model accepts 23 to 42 inch, 30 kg maximum, VESA 75x75 to 200x200. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
