Description

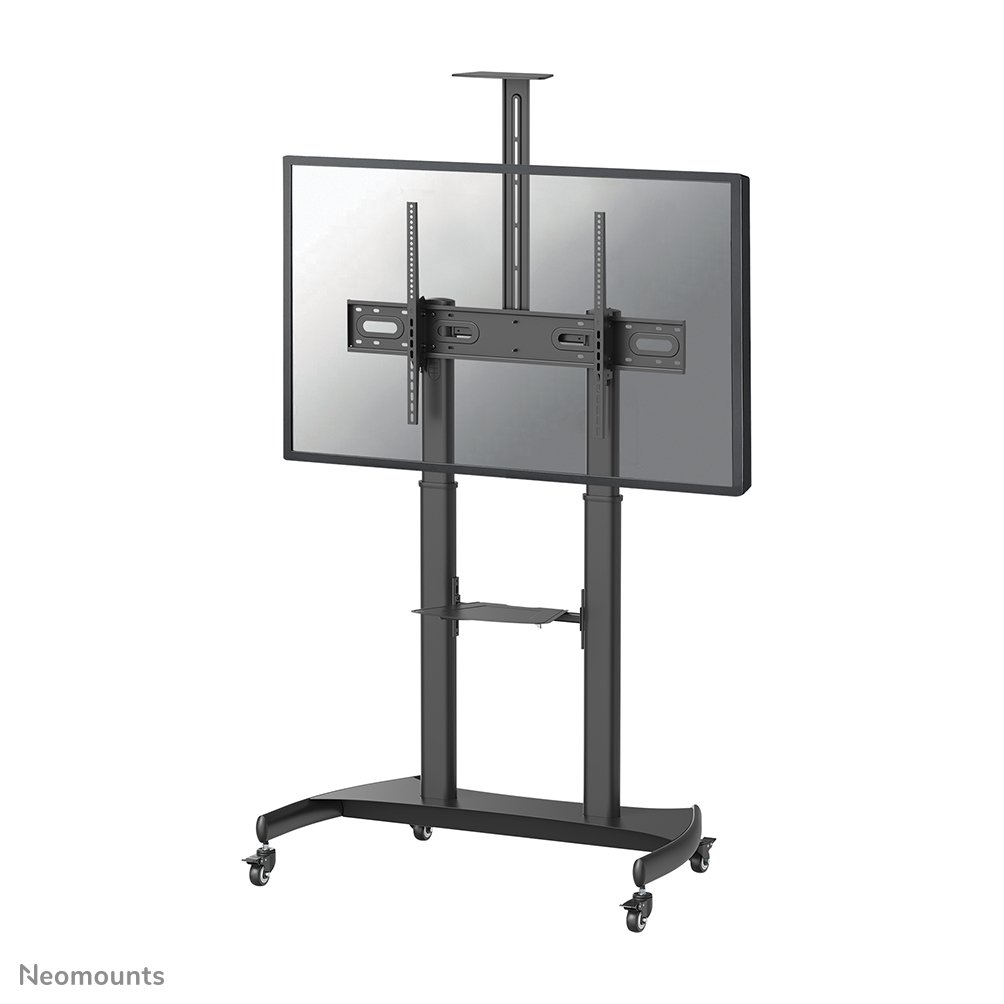

Enjoy the optimal viewing positioning for both standing and seated audiences, wherever you like. The versatile tilt (15°) technology allows the trolley to change to any desired viewing angle to fully benefit from the capabilities of the screen. The mount is manually adjustable in height from 134 to 166 cm, while the practical cable management conceals and routes cables from screen to floor. The PLASMA-M1950E features four solid castor wheels with brake to easily move it to another location. Installation is easy and can be done quickly.
Specifications
| Min. screen size (inch) | 60 |
|---|---|
| Max. screen size (inch) | 100 |
| Max. weight (kg) | 100 |
| Screens | 1 |
| Min. VESA | 200x200 mm |
| Max. VESA | 1000x600 mm |
| VESA pattern | 200x400, 400x400, 400x600, 200x300, 300x300, 440x400, 500x400, 600x200, 600x300, 600x400, 680x300, 800x200, 400x300, 400x500, 600x500, 600x600, 800x500, 900x600, 300x100, 1000x400, 1000x600, 350x350, 400x200, 500x500, 200x200, 300x200, 800x400, 800x600 |
| Mount | Floor |
| Tilt (degrees) | 15° |
| Height adjustment | 134-166 cm |
| Cable management | Yes |
| Main material | Steel |
| Net weight of product (kg) | 38.61 |
| Gross weight of packaging (kg) | 41.8 |
| Country of origin | China |
| EAN code | 8717371447052 |
Use and tips
A mobile stand lets you move the screen from room to room without drilling again, which suits training, demonstrations and rented premises. Check the clear width of your doorways and the total loaded weight, and always lock the castors before handling the screen.
Frequently asked questions
Is my screen compatible?
This model accepts 60 to 100 inch, 100 kg maximum, VESA 200x200 to 1000x600. These three values have to be checked together: the screen size, the weight and the hole pattern on the back of the screen. If your screen has no VESA holes or if you are unsure, our contact page puts you in touch with our technical team.
What is the warranty?
Neomounts covers this product with a 5 year manufacturer warranty from the invoice date, for use in line with the instructions. The warranty covers manufacturing defects and mechanical parts, not damage caused by a load above the stated capacity.
Where are the assembly manual and the product sheet?
Neomounts provides the product sheet, the assembly manual, the line drawing and the safety sheet of this model free of charge: our Neomounts support page takes you straight to those documents.
Is the mounting hardware included?
The screws and the assembly instructions are supplied in the box. The anchors provided suit solid substrates; for a hollow partition, a metal stud frame or a suspended ceiling, plan fixings suited to your structure. Our contact page puts you in touch with our technical team to confirm your case.
